Agilex Scout Mini (Mecanum Wheel) Differential Driving Robot Rover
Original price was: $5,000.00.$4,899.00Current price is: $4,899.00.
Agilex RANGER DELTA Three-Wheel Steering Mobile Robot Platform
Original price was: $5,500.00.$4,950.00Current price is: $4,950.00.
Short Description
For indoor and outdoor hybrid scenarios, the Agilex robot offers the RANGER DELTA (three-wheel, three-steering) high-mobility mobile robot chassis platform. Adopting a highly integrated drive system and modular interface design, it supports the expansion of multiple sensors, navigation systems and development environments, providing a stable and reliable basic platform specifically for humanoid robots, intelligent collaboration, as well as scientific research and education.
Buy it with:
Payload
80 KG
Runtime
NL6.5 H
speed
1.5 M/S
We have launched the RANGER DELTA highly maneuverable mobile robot chassis platform for indoor and outdoor mixed scenarios. It features a highly integrated drive system and modular interface design, supporting secondary development.
Compact and flexible, supporting multiple motion modes.
0mm turning radius, maneuvering effortlessly even in confined spaces
Ackermann mode, balancing high-speed stability and steering precision
Omnidirectional drive with fast response and smooth motion
Built-in navigation
Supports access to mainstream SLAM algorithms, enabling autonomous navigation, path planning, and dynamic obstacle avoidance.
Non-navigation version is optional: without LiDAR and SLAM modules.
Motion control and chassis communication interfaces are retained, suitable for secondary development and educational applications.
University Research
Higher Education & Scientific Research
Embodied Intelligence / Mobile Chassis
RANGER DELTA

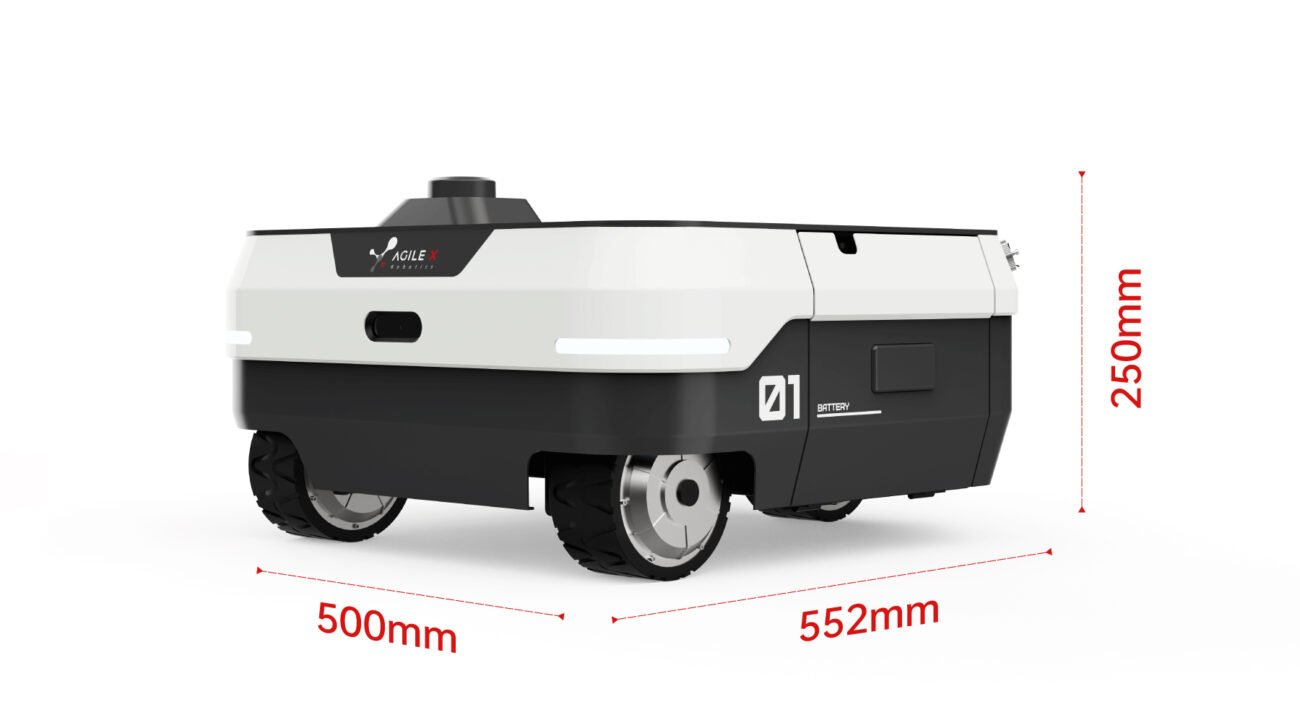

| DIMENSIONS | 500*552*250MM |
| PLATFORM WEIGHT | 75KG |
| MAX PAYLOAD | 100KG |
| CLIMBING ABILITY | ≤15°(WITH LOAD) |
| IP RATING | IP54 |
| MAX SPEED | 2M/S |
| MAX TRAVEL | 45KM |
| OBSTACLE CLEARANCE | 10MM |
| DITCH CROSSING CAPABILITY | 40MM |
| ENDURANCE TIME | 2.5-6.5H |
| CHARGING TIME | 3H |
| BRAKING TIME | 1M |
Product Parameters
| DIMENSIONS |
500*552*250MM |
|---|---|
| PLATFORM WEIGHT |
45KG |
| MAX PAYLOAD |
80KG |
| CLIMBING ABILITY |
≤8°(WITH LOAD) |
| IP RATING |
IP22 |
| MAX SPEED |
1.5M/S |
| MAX TRAVEL |
45KM |
| OBSTACLE CLEARANCE |
10MM |
| DITCH CROSSING CAPABILITY |
40MM |
| MAX ENDURANCE TIME |
6.5H |
| BRAKING TIME |
1M |
