Key Features
580*612*245
Dimensions (mm)
23kg
Weight
Li-NMC
Battery
3m/s
Max Speed
3.5h (No-Load)
Range (Operating Time)
IP22
Protection Level
30°
Climbing Angle
Agilex RANGER DELTA Three-Wheel Steering Mobile Robot Platform
Original price was: $5,500.00.$4,950.00Current price is: $4,950.00.
Agilex PiPER Robotic Arm US Stock Arm Only
Original price was: $3,000.00.$2,950.00Current price is: $2,950.00.
Agilex Scout Mini (Mecanum Wheel) Differential Driving Robot Rover
Original price was: $5,000.00.$4,899.00Current price is: $4,899.00.
Short Description
Agilex Scout Mini is not just a robot; it’s your field-ready development platform for the future of autonomy. Engineered for researchers, developers, and innovators, this compact Unmanned Ground Vehicle (UGV) combines rugged all-terrain mobility with native ROS support and a highly modular design. Stop building from scratch and start deploying your advanced algorithms in real-world environments, faster than ever before.
Leave the lab floor behind. The Scout Mini is built to explore.
Self-Flipping Design: Never get stuck. The robot can autonomously right itself after a tumble.
Superior Obstacle Clearance: Conquer stairs, curbs, and debris up to 12 cm high with ease.
Aggressive Traction: High-torque motors and all-terrain treads provide grip on grass, gravel, dirt, and pavement.
Steep Slope Climbing: Confidently navigate inclines up to 30°
Buy it with:

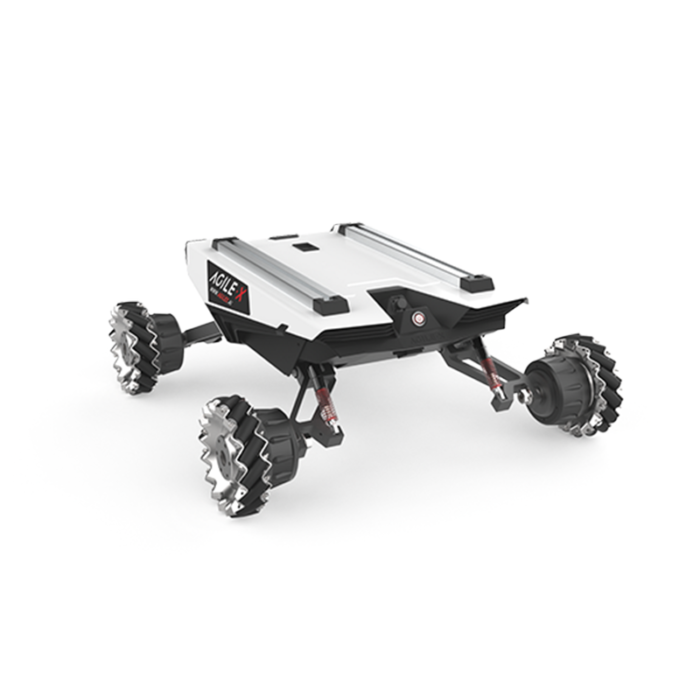

SCOUT MINI
Small Footprint, Boundless Exploration – The All-Terrain High-Speed UGV.

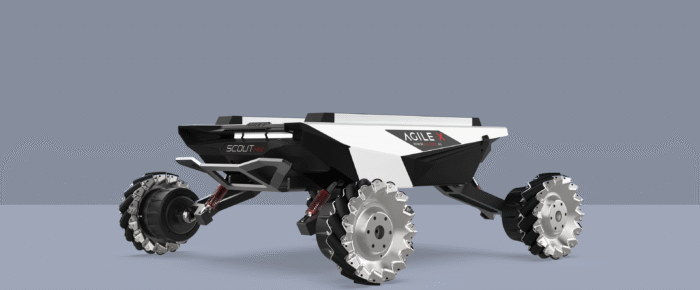

360° full view of the whole body and details.
This view provides a detailed 360° overview, highlighting key design features such as its compact chassis, wheel and suspension configuration, and external sensor placement.
On-the-Spot Pivoting & Agile Maneuverability
Capable of in-situ rotation and precision steering, it easily handles movement requirements in confined or complex spaces. The platform delivers stable and responsive control in both laboratory settings and industrial environments.
Lightweight Yet Rugged: Master of All-Terrain Obstacle Crossing
Featuring a 23 kg lightweight chassis, this platform delivers 30° gradeability and 120 mm vertical obstacle surmounting capability. Its combination of four-wheel differential drive and an independent suspension system ensures stable and smooth traversal across challenging surfaces such as gravel, grass, and uneven ground.
Open Ecosystem for Rapid Development
Featuring an open hardware and software architecture, it provides native support for CAN bus, ROS/ROS 2, and a comprehensive SDK. The platform enables flexible integration of multi-sensor payloads, including LiDAR, depth cameras, and 5G modules, to facilitate efficient algorithm validation and system integration.
Dimensional Diagram
| DIMENSIONS | 612*580*245MM |
| PLATFORM WEIGHT | 23KG |
| MAX PAYLOAD | 10KG (STANDARD WHEEL) 20KG (MECANUM WHEEL) |
| CLIMBING ABILITY | ≤30°(STANDARD WHEEL) ≤8°(MECANUM WHEEL) |
| IP RATING | IP22 |
| COMMUNICAITION | STANDARD CAN.232SERIAL PORT |
| Hardware | 3M/S (STANDARD WHEEL) 3M/S (MECANUM WHEEL) |
| MAX TRAVEL | 10KM |
| OBSTACLE CLEARANCE | 115MM |
| CONTROL METHOD | PC CONTROL/APP CONTROL |
| CHARGING TIME | 2H |
| BATTERY CAPACITY | 24V15Ah |
Product Parameters
| DIMENSIONS |
612*580*245MM |
|---|---|
| PLATFORM WEIGHT |
23KG |
| MAX PAYLOAD |
10KG (STANDARD WHEEL) |
| CLIMBING ABILITY |
≤30°(STANDARD WHEEL) |
| IP RATING |
IP22 |
| COMMUNICAITION |
STANDARD CAN.232 SERIAL PORT |
| MAX SPEED |
3M/S (STANDARD WHEEL) |
| MAX TRAVEL |
10KM |
| OBSTACLE CLEARANCE |
115MM |
| SCOUT MINI |
SCOUT MINI(Mecanum Wheel) |
