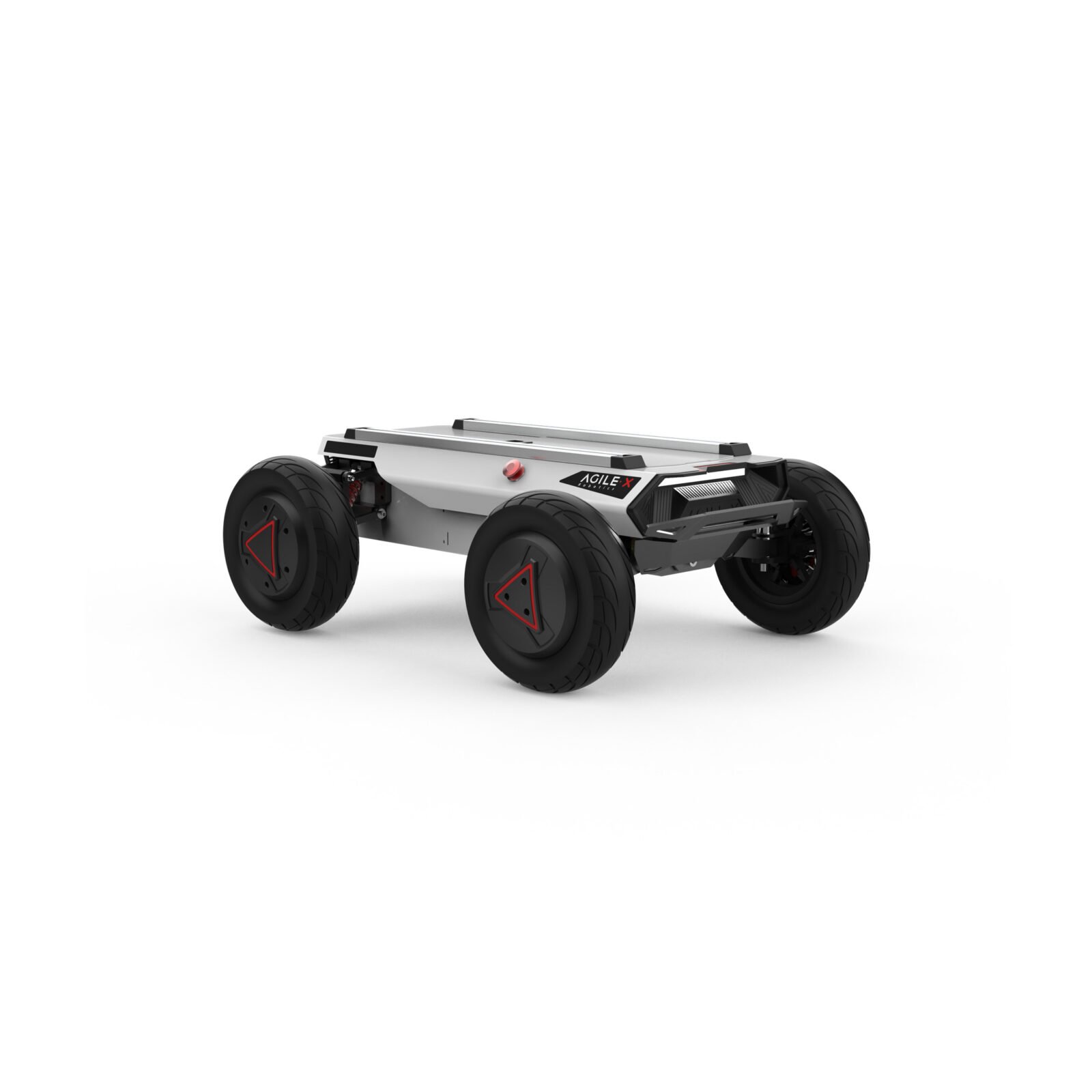

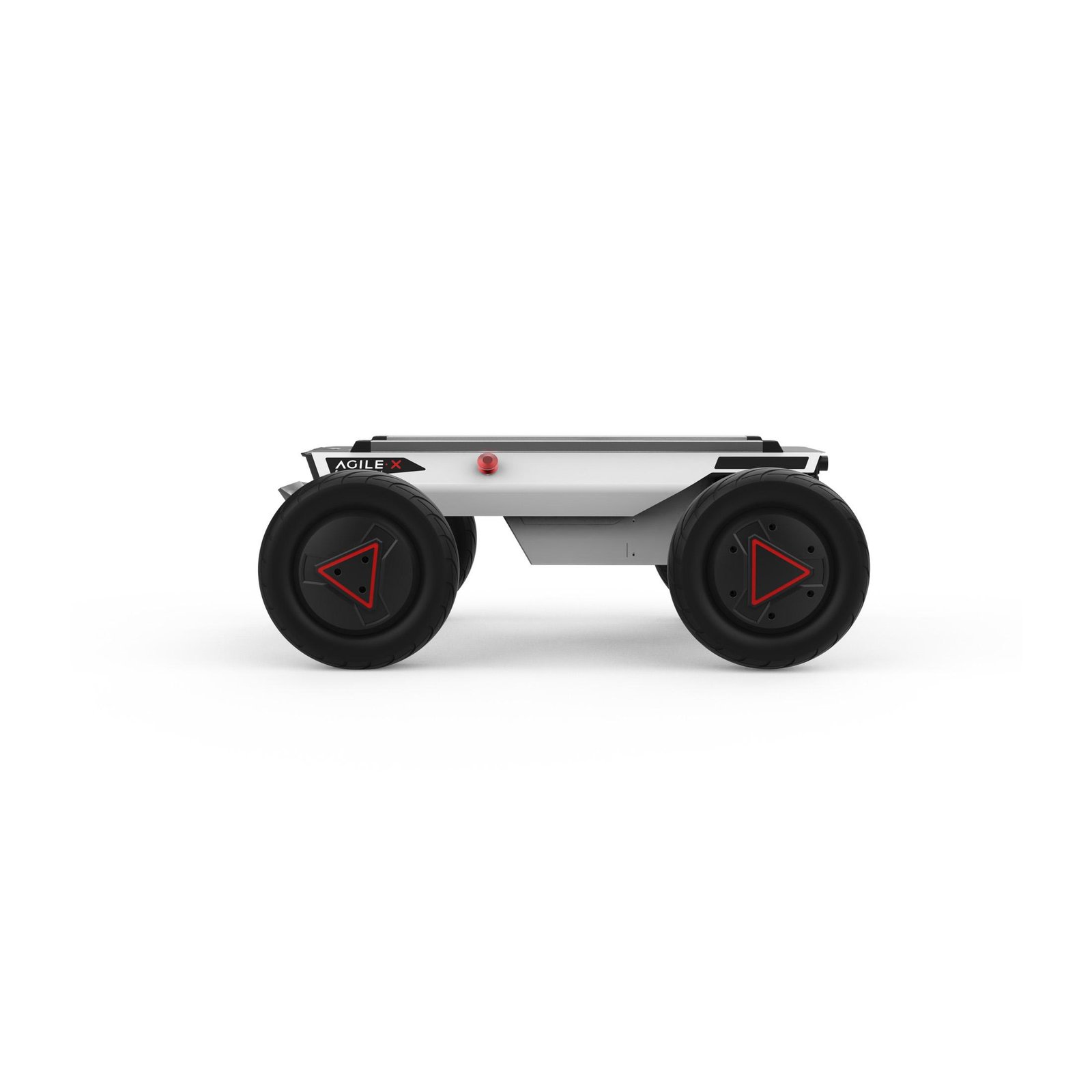

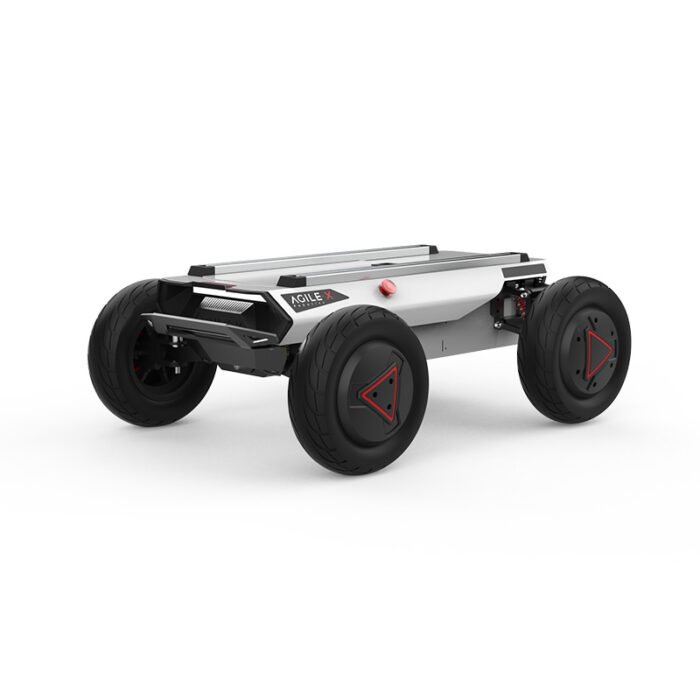

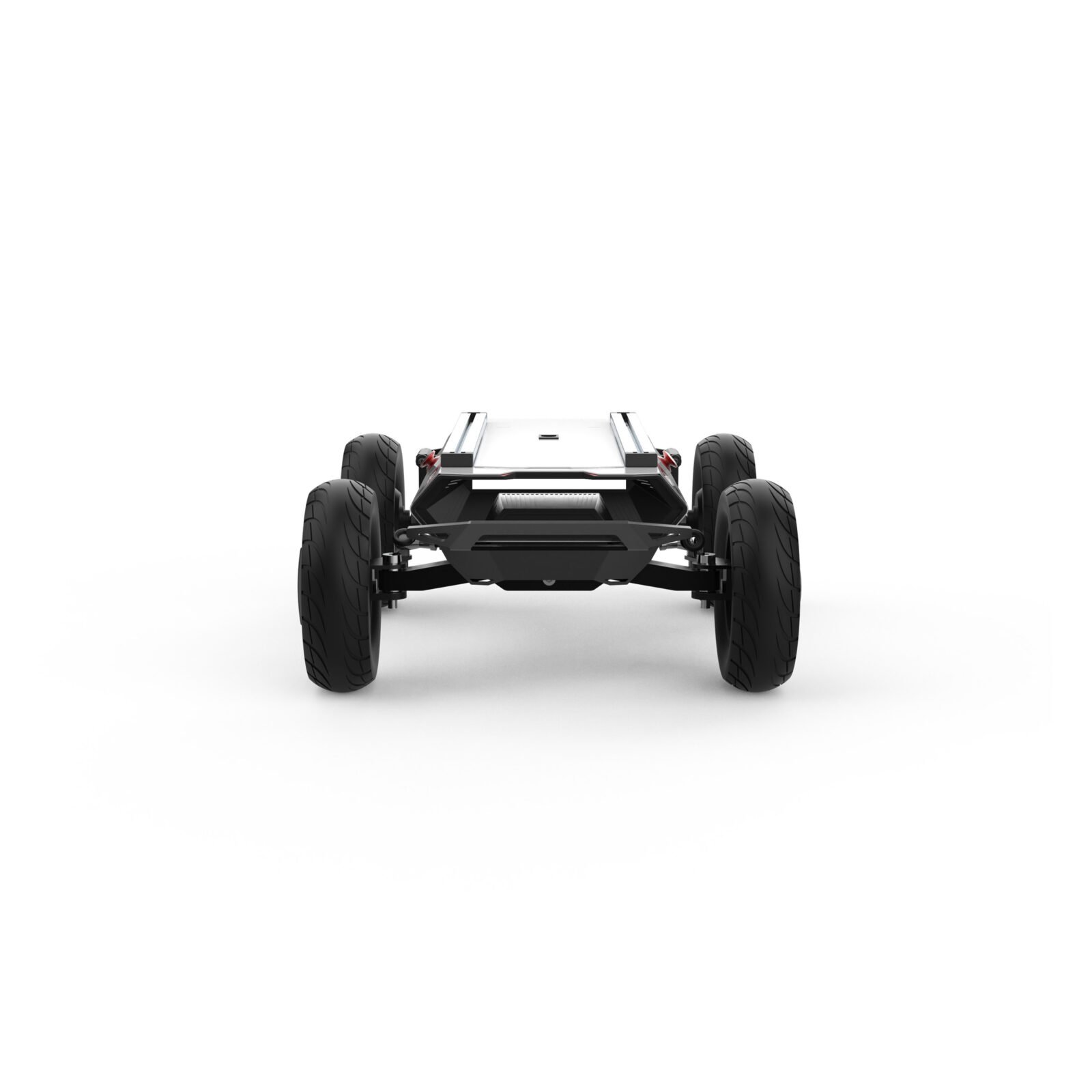

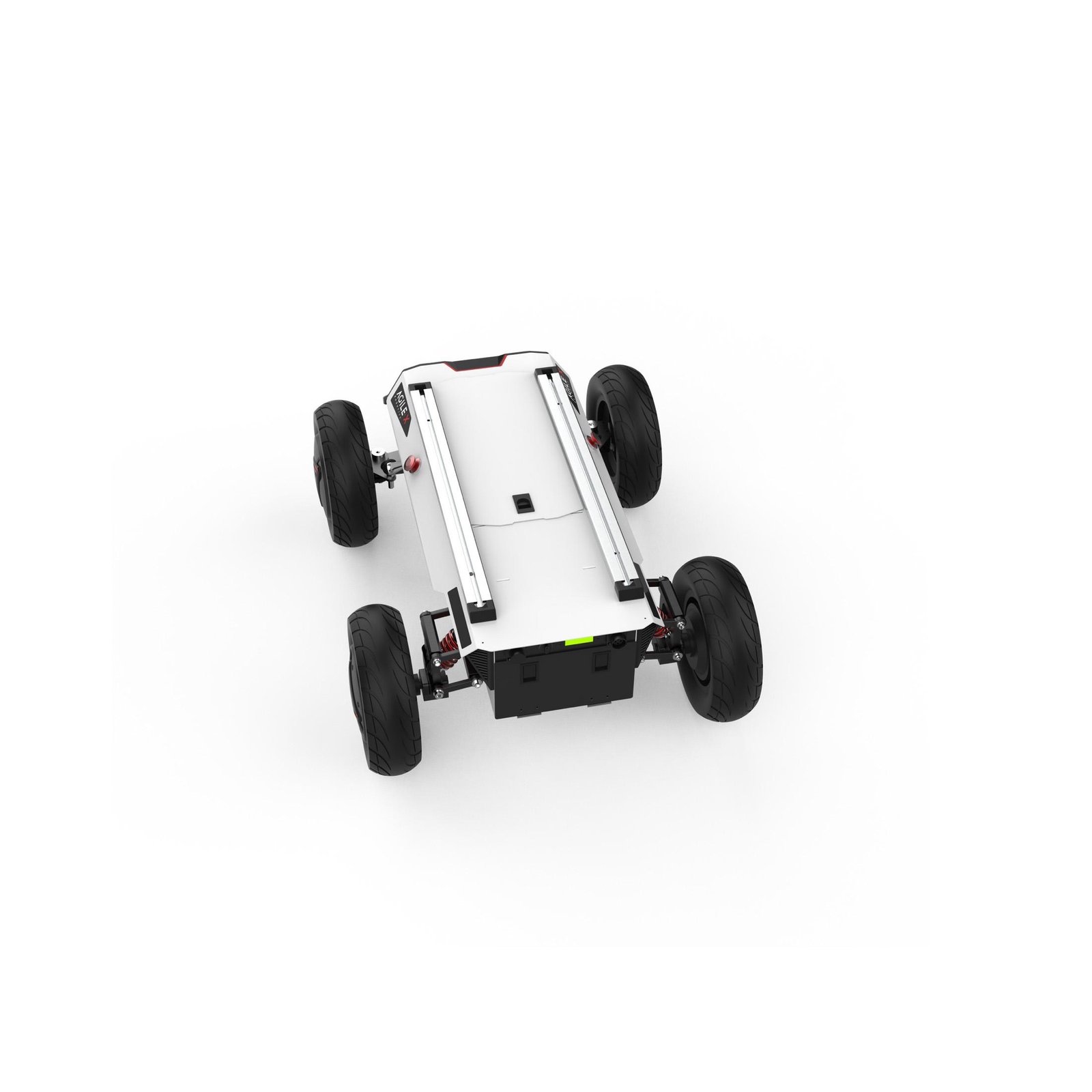

Agilex HUNTER SE Small Ackermann Steering Mobile Robot
Original price was: $7,000.00.$6,299.00Current price is: $6,299.00.
Short Description
Hunter SE is an Ackermann steering wheeled robot designed for the challenging road conditions and speed requirements of urban areas. It’s built to offer car-like driving capabilities for high speed autonomous applications.
Buy it with:
Payload
50 KG
Runtime
120 MIN
speed
4.8 M/S
Hunter SE is an Ackermann steering wheeled robot designed for the challenging road conditions and speed requirements of urban areas. It's built to offer car-like driving capabilities for high speed autonomous applications.

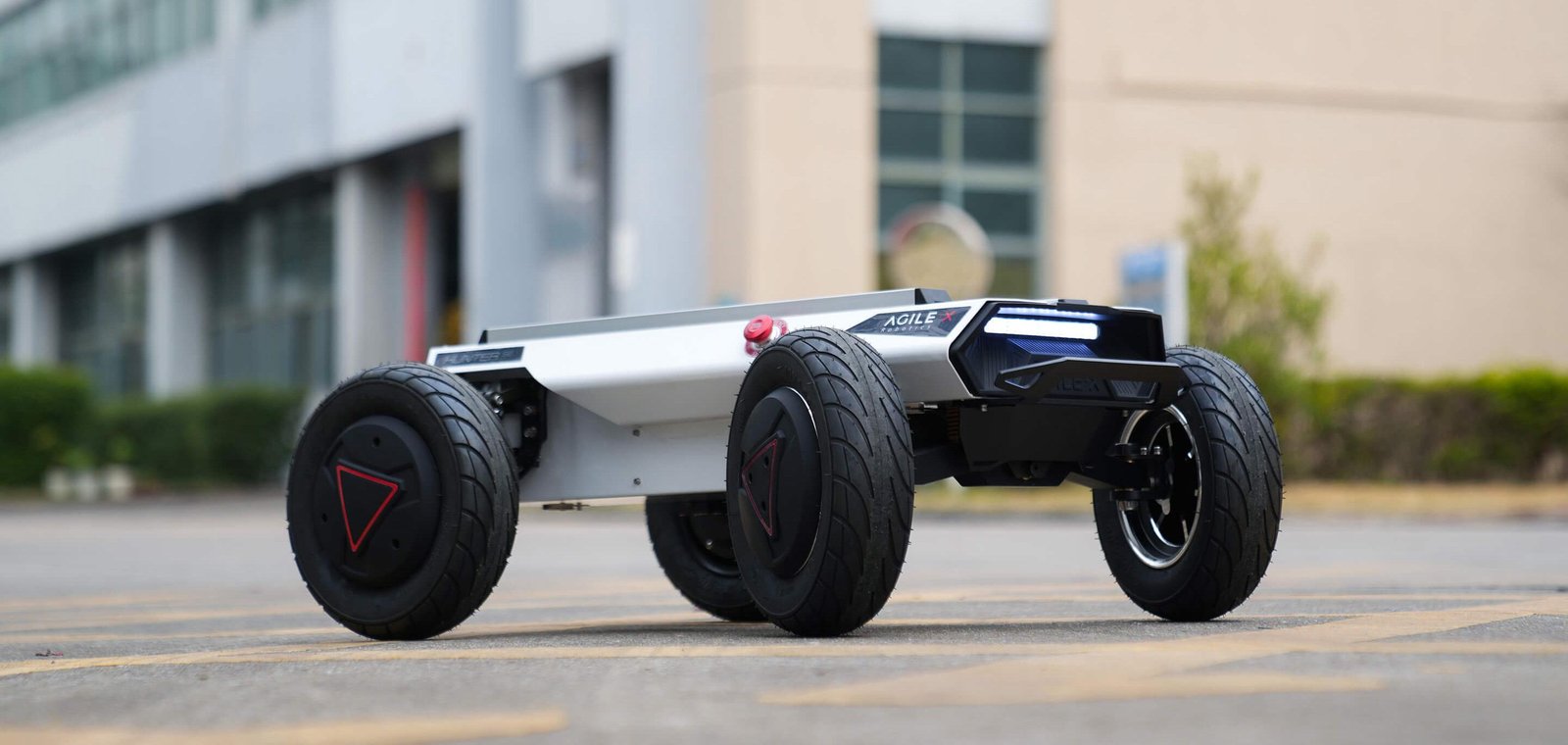

Sleek Design, Superior Quality.
Featuring a minimalist design, the HUNTER SE delivers exceptional rational and stable industrial-grade quality through highly integrated motor control technology, a wide operating temperature range, and a clean, robust steel body.
Upgraded Power, High-Speed Movement.
The system adopts the latest in-wheel motor structure technology, delivering a speed of 4.8 m/s. Benefiting from the car-style front-wheel steering structure, it offers precise motion control and low tire wear.
Damping And Climbing,Load Capacity 50kg
The HUNTER SE is equipped with a combined damping system, including a front swing arm and rear independent suspension. Even during dynamic operation on such complex urban road conditions, the HUNTER SE can still achieve a large payload capacity of 50 kg.
Warehousing and Logistics
Scientific Research in Universities
Dimensional Diagram
| DIMENSIONS | 820*640*310MM |
| PLATFORM WEIGHT | 42KG |
| MAX PAYLOAD | 50KG |
| CLIMBING ABILITY | ≤10°(WITH LOAD) |
| IP RATING | IP22 |
| COMMUNICAITION | STANDARD CAN,232 SERIAL PORT |
| MAX SPEED | 4.8M/S |
| MAX TRAVEL | 30KM |
| OBSTACLE CLEARANCE | 50MM |
Product Parameters
| DIMENSIONS |
820*640*310MM |
|---|---|
| PLATFORM WEIGHT |
42KG |
| MAX PAYLOAD |
50KG |
| CLIMBING ABILITY |
≤10°(WITH LOAD) |
| IP RATING |
IP22 |
| COMMUNICAITION |
STANDARD CAN,232 SERIAL PORT |
| MAX SPEED |
4.8M/S |
| MAX TRAVEL |
30KM |
| OBSTACLE CLEARANCE |
50MM |
