Key Features
720*500*345
Dimensions (mm)
73kg
Weight
1.5H
Charging Time
2m/s
Max Speed
6h (No-Load)
Range (Operating Time)
IP54
Protection Level
20°
Climbing Angle
Agilex RANGER Omnidirectional Four-Wheel Steering Mobile Robot Platform
Original price was: $18,800.00.$16,920.00Current price is: $16,920.00.
Agilex PiPER-H Robot Arm US Stock Arm Only
Original price was: $3,500.00.$3,449.00Current price is: $3,449.00.
Agilex RANGER MINI 3.0 Omnidirectional Four-Wheel Steering Mobile Robot Platform
Original price was: $10,800.00.$9,720.00Current price is: $9,720.00.
Short Description
Ranger Mini 3.0 is designed specifically for industrial applications. This revolutionary mobile robot introduces innovative features to enhance its performance.
Buy it with:
Payload
100 KG
Runtime
8 HRS
speed
2 M/S
Ranger Mini 3.0 is designed specifically for industrial applications. This revolutionary mobile robot introduces innovative features to enhance its performance.
Four-wheel-drive chassis with intelligent integrated structure.
Equipped with four wheel hub servo motors, the RANGER enables in-place rotation, serpentine travel, and Ackerman steering. Its suspension system delivers agile mobility, zero turning radius, and smooth rides. Featuring high-precision trajectory tracking, it is ideal for autonomous driving applications.
Maximizes body space and supports modular, flexible combination.
Featuring a robust, minimalist design, the RANGER offers a 150kg payload capacity on its top platform. Users can freely combine modules like building blocks to rapidly develop custom solutions.
Modular UPS with hot-swappable capability.
Fully modular power supply with hot-swappable power, bypass and control modules.Quick replacement, easy installation, expansion and maintenance.Redundant control module ensures high system reliability.
Warehousing and Logistics
Intelligent Delivery
Factory Delivery
Bank Cash Escort

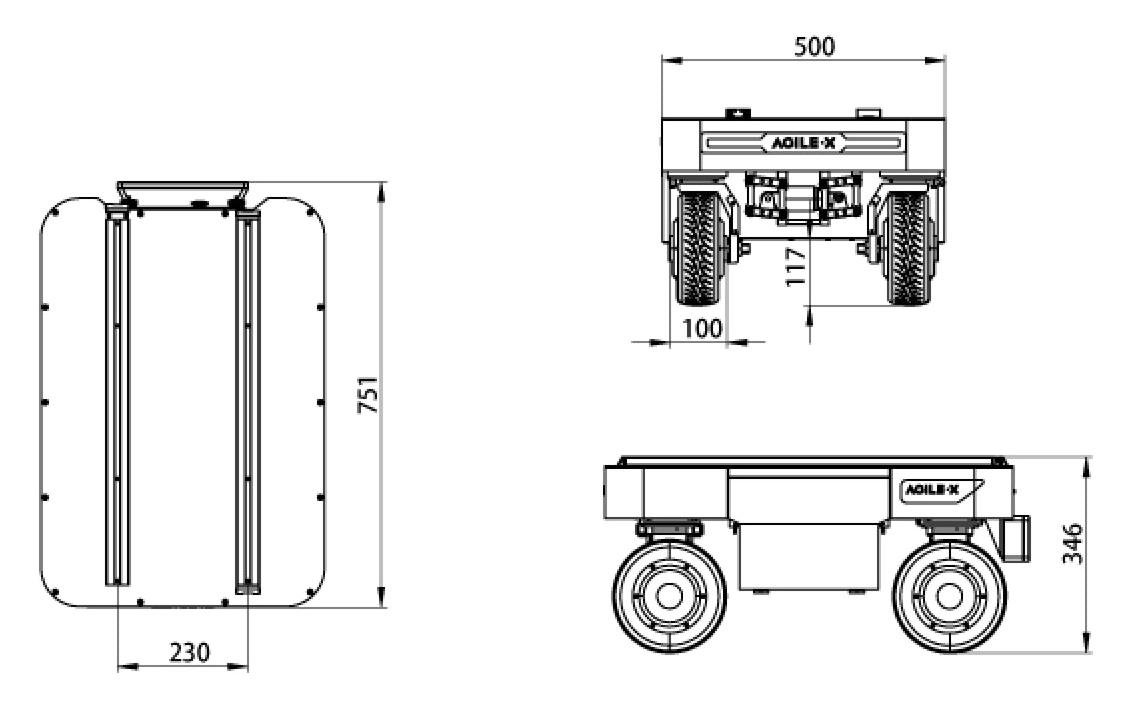

Dimensional Diagram
| DIMENSIONS | 720*500*345MM |
| PLATFORM WEIGHT | 75KG |
| MAX PAYLOAD | 100KG |
| CLIMBING ABILITY | ≤15°(WITH LOAD) |
| IP RATING | IP54 |
| COMMUNICAITION | STANDARD CAN,232SERIAL PORT |
| MAX SPEED | 2M/S |
| MAX TRAVEL | 45KM |
| OBSTACLE CLEARANCE | 75MM |
| DITCH CROSSING CAPABILITY | 100mm |
| ENDURANCE TIME | 3H |
| CHARGING TIME | 1.5H |
Product Parameters
| DIMENSIONS |
720*500*345MM |
|---|---|
| PLATFORM WEIGHT |
75KG |
| MAX PAYLOAD |
100KG |
| CLIMBING ABILITY |
≤15°(WITH LOAD) |
| IP RATING |
IP54 |
| COMMUNICAITION |
STANDARD CAN,232SERIAL PORT |
| MAX SPEED |
2M/S |
| MAX TRAVEL |
45KM |
| OBSTACLE CLEARANCE |
75MM |
| DITCH CROSSING CAPABILITY |
100mm |
| ENDURANCE TIME |
3H |
| CHARGING TIME |
1.5H |
Order Confirmation
After your payment is processed, one of our engineers will contact you via email to confirm your product specifications and delivery details. Please respond promptly to ensure timely delivery.
Processing Time
Orders ship within 15 business days from the date of order confirmation.
Delivery Method
We provide door-to-door delivery service for all robot products. Our shipping partners will deliver your order directly to your specified address.
Tracking Information
Once your order ships, you will receive a tracking number via email to monitor your delivery status.
