Key Features

4.8kg

Weight

3kg

Payload

580mm

Working Radius

DC24V

Power

180-225°/s

Joint speeds

7

Dof

Power Interface 1, CAN Interface 1, Network Port *1

Interfaces

NER0 7-DOF Robotic Arm – Humanoid Research & Embodied Intelligence

Original price was: $2,999.00.Current price is: $2,799.00.

Short Description

One More DOF, One Step Ahead in Humanoid Robotics

NER0’s humanoid seven-axis redundant configuration doesn’t just add an extra degree of freedom—it fundamentally transforms what’s possible. By replicating the natural movement characteristics of the human arm, NER0 enables more intuitive programming, obstacle avoidance, and human-li

Buy it with:

-7%

Quick view

Add to wishlist

NER0 7-DOF Robotic Arm – Humanoid Research & Embodied Intelligence

Robot Arm, Education, Robot Arm, New Arrive

Add to wishlist

Add to compare

Categories: Education, New Arrive, Robot Arm, Robot Arm

Product Description

Hiwonder MechDog Pro, a compact yet highly capable quadruped robot dog, is driven by an ESP32 controller and 8 high-speed coreless servos. Its remarkable agility and movement capabilities stem from sophisticated inverse kinematics algorithms. This open source robotic dog is designed for expansion, featuring ports for ultrasonic and IMU sensors. It supports a 3DOF mini robot arm expansion for autonomous object gripping and transportation. With built-in WiFi module, AI voice interaction, AI vision interaction, MechDog Pro provides an engaging platform for robotics education. Python, Scratch, and Arduino are supported and MechDog Pro provides comprehensive resources to start your robot dog development journey.

Payload

3 KG

Reach

580 MM

Repeatability

0.1 MM

Human Like Motion Control

NERO uses a 7 DoF arm design that delivers smooth and natural movements. It is well suited for embodied AI and humanoid robot research.

Lightweight, Strong and Easy to Install

NERO weighs only 4.8 kg and carries up to 3 kg. It supports cameras, grippers and sensors. It can be installed on a table/side upside down.

Full-Stack & Flexible Deployment

Full-stack control via CAN/HTTP/TCP, plus intuitive modes: Drag-and-Teach, Offline Trajectory, and API. Seamlessly compatible with Python SDK & ROS1/ROS2 and easily integrates with AgileX mobile chassis for a complete embodied platform.

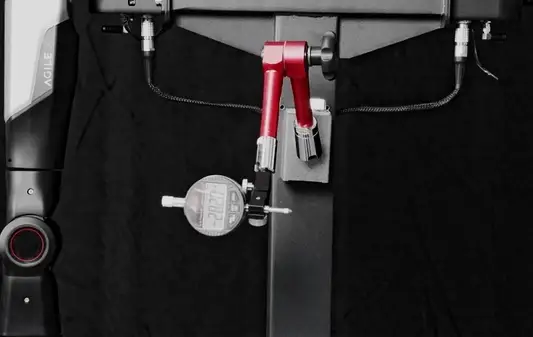

Stable and Precise for Research

NERO provides repeatability of 0.1 mm, power use under 60W and noise levels under 60 decibels. This makes it suitable for labs, offices, and mobile robot platforms.

Dimensional Diagram

Degrees of Freedom	7-DOF
Product weight	4.8kg
Working Radius	580mm
Payload Capacity	3kg
Installation Options	Desktop, Side, Inverted
Power supply	7.4V 1500mAh 5C Lithium battery
Hardware	ESP32 robot controller
Software	app + action editing PC software
Servo	HPS-0618SG coreless servos; LFD-01M anti-blocking servos;
Control method	PC control/ app control
Package size	482017cm
Package weight	About 1.9kg

Product Parameters

Weight	12 lbs
Dimensions	71 × 35 × 35 in
Degrees of Freedom (DOF)	7-axis (high dexterity for complex tasks)
Working Radius	580mm (optimal reach for tabletop & confined spaces)
Power Supply	DC24V (standard industrial voltage)
Noise Level	<60dB (quiet operation for lab & office environments)
Controller	Integrated Industrial PC (real-time processing, plug-and-play compatibility)
Body Weight	4.8kg (ultra-lightweight for easy deployment)
Payload Capacity	3kg (suitable for light assembly, pick-and-place, and R&D)
Installation Options	Desktop/tabletop, side mount, ceiling/inverted mount
Compact Base	70 × 70 mm with 4× M5 mounting holes – fits almost anywhere
Interfaces	CAN Bus, Ethernet (TCP/IP), HTTP API
Control Modes	Drag Teaching (intuitive manual guidance) Offline Programming (predefined path execution) API/SDK Support (Python, C++, ROS compatibility) Host Computer Control (PC-based operation)
Power Consumption	Max ≤150W
Maximum Joint Speeds	J1–J3: 180°/s J4–J7: 225°/s

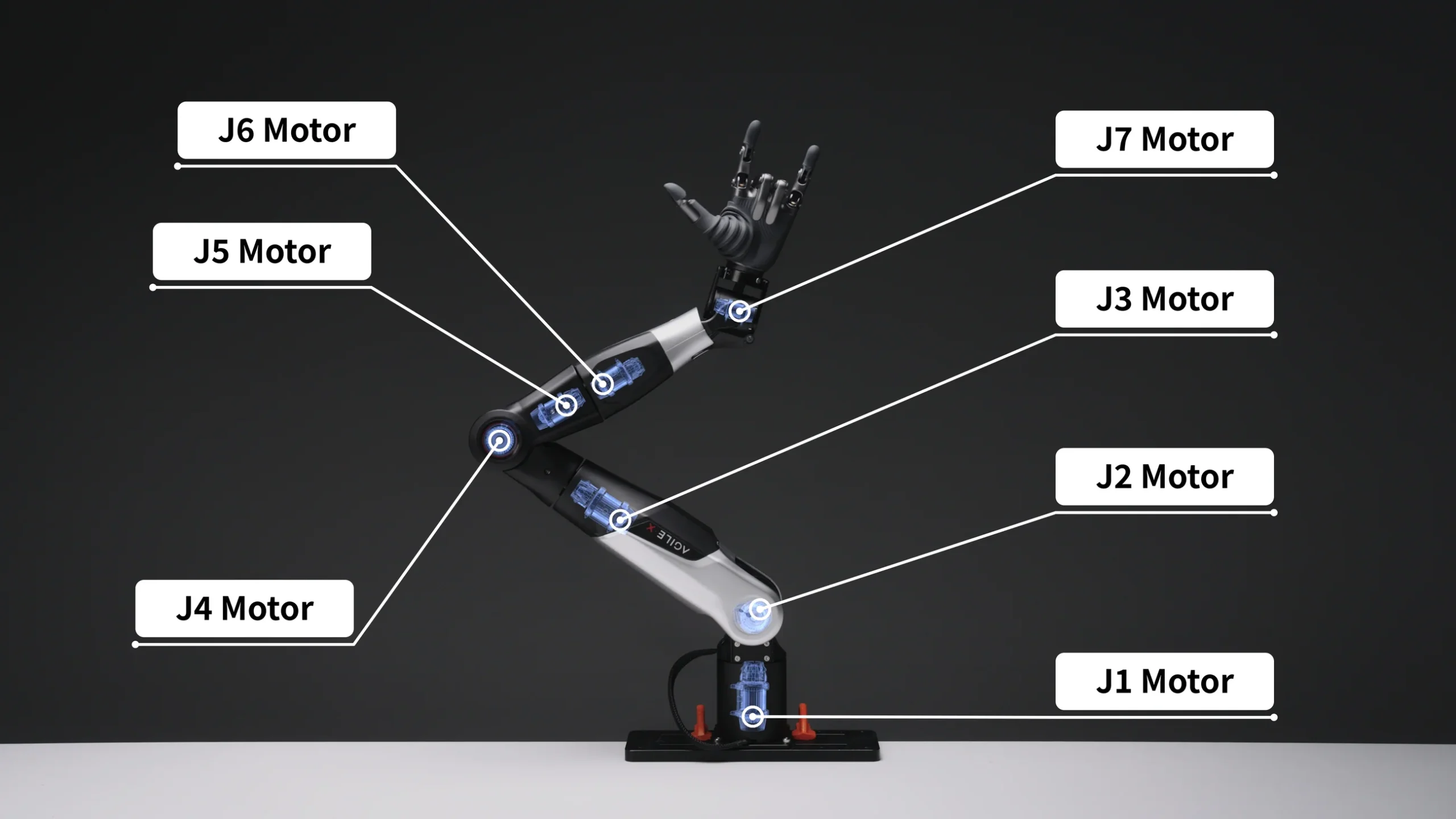

Joint Range of Motion	J1: ±157° J2: −15° to +190° J3: ±160° J4: −60° to +125° J5: ±160° J6: −43° to −58° (optimized wrist design) J7: ±90°

Order Confirmation

After your payment is processed, one of our engineers will contact you via email to confirm your product specifications and delivery details. Please respond promptly to ensure timely delivery.
