Key Features
Tracked
Drive Type
570x690x335
Dimensions (mm)
56kg
Load Capacity
1m/s
Max Speed
Li-NMC
Battery
2h (No-Load)
Range (Operating Time)
Yes
Auto-Recharge
IP67
Protection Level
30° (No-Load)
Climbing Angle
Agilex PiPER Robotic Arm with Gripper, US Warehouse
Original price was: $2,999.00.$2,799.00Current price is: $2,799.00.

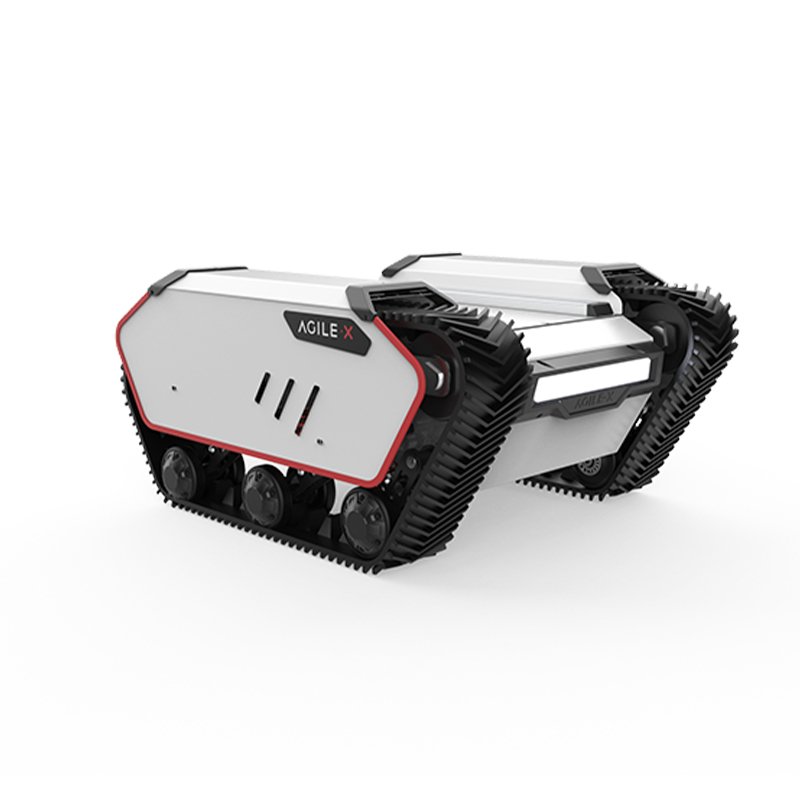

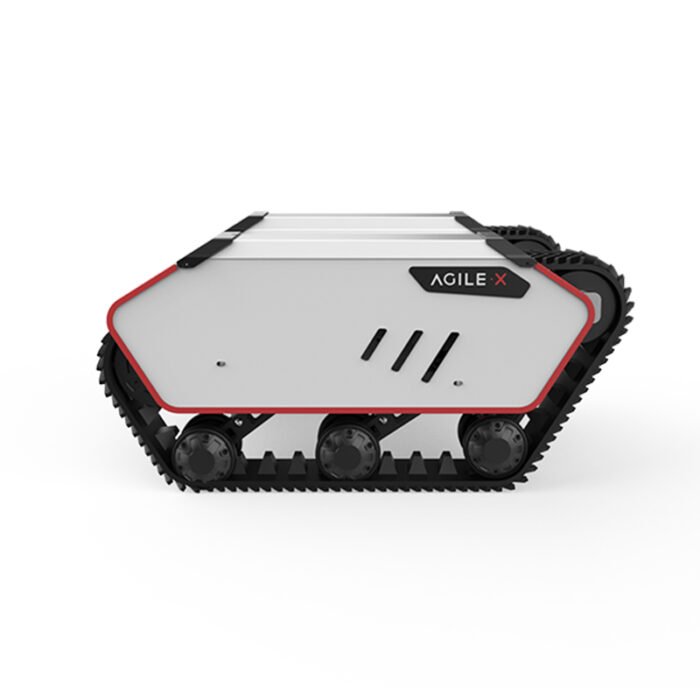

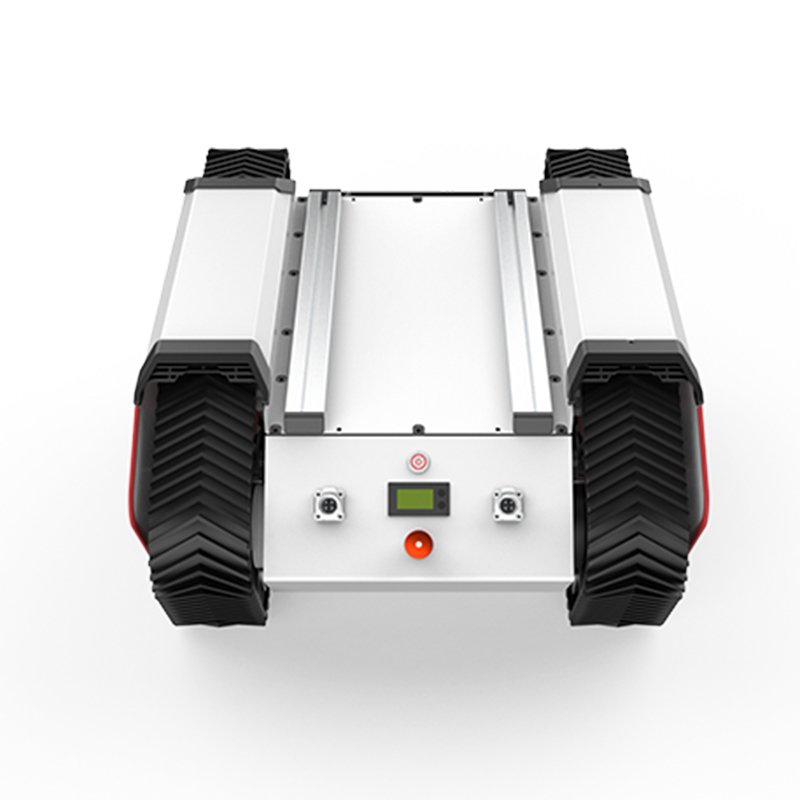

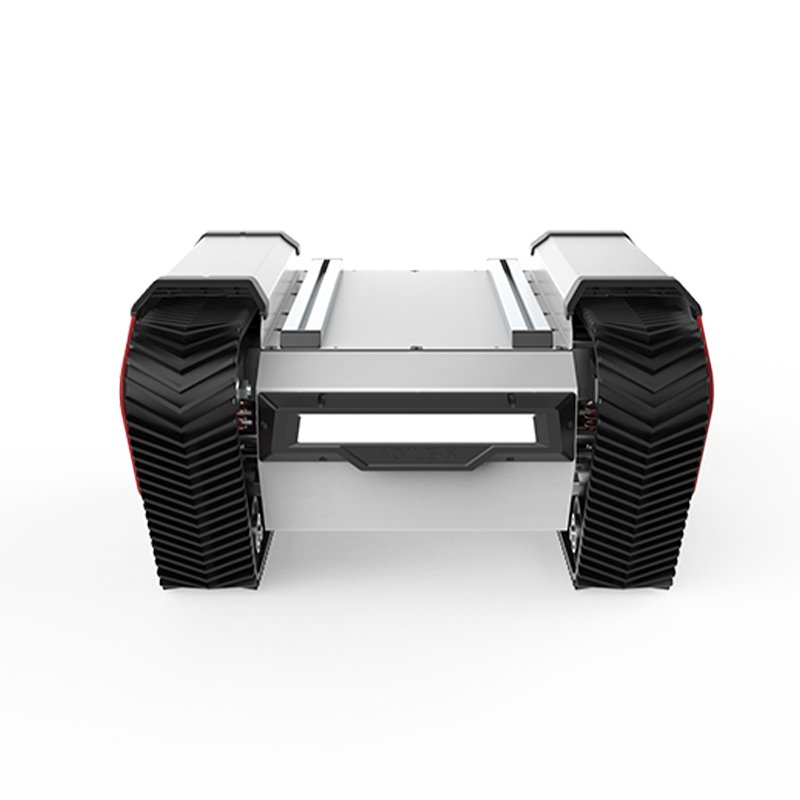

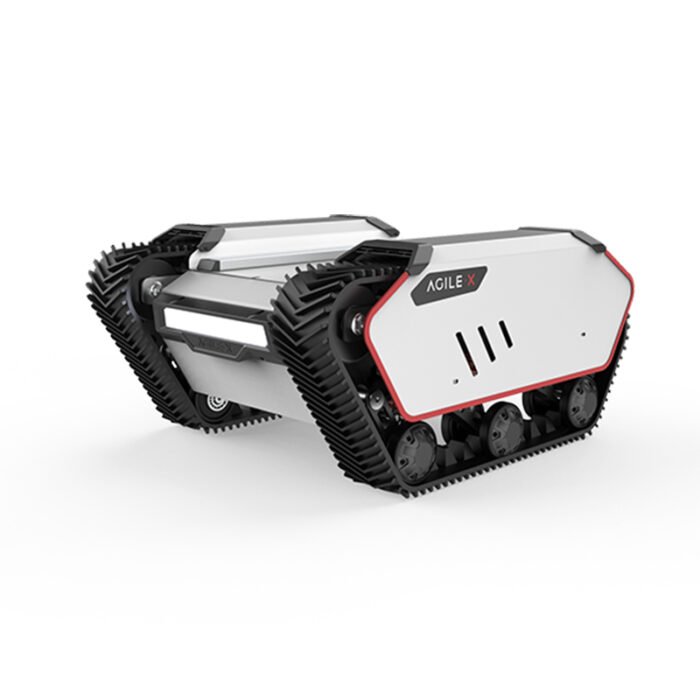

Agilex Bunker Mini: Ultimate Smallest Tracked Mobile Robot Chassis Platform
$429.00
Short Description
Introducing the Agilex Bunker Mini – the smallest and most versatile tracked mobile robot chassis platform on the market.
Engineered for cutting-edge robotics research and development, the Bunker Mini combines compact design with robust performance, making it ideal for navigating challenging terrains with ease. Its modular architecture allows seamless integration with advanced sensors, payloads, and control systems, empowering creators to push the boundaries of innovation in robotics.
Whether you’re developing for academic research, industrial automation, or specialized applications, the Agilex Bunker Mini offers unparalleled agility and adaptability to bring your robotic projects to life.
Buy it with:
Explore MechDog Pro Tutorials: Get instant access to schematics, source code,
videos.https://wiki.hiwonder.com/projects/MechDog/en/latest/
Small Tracked Mobile Robot
BUNKER MINI is a compact tracked mobile robot specifically designed to tackle demanding off-road terrains, as well as confined and challenging work areas. With its exceptional capabilities, it excels at preventing the infiltration of sand, dust, and water.
All-Terrain High Mobility Platform
Equipped with a Christie suspension system and a tracked differential steering system, it achieves a 30° gradeability, 200mm trench-crossing, and 150mm vertical obstacle surmounting capability, enabling it to tackle complex outdoor environments with ease.
Rugged Protection for All-Weather Operation
Featuring IP67-rated dustproof and waterproof protection and an operating temperature range of -10 to 40°C, it is built to perform reliably in harsh conditions, including wading through water, muddy terrain, and rugged environments.
Efficient Endurance and Power Configuration
Equipped with a 24V lithium iron phosphate battery (30Ah/60Ah optional), it delivers a full-load cruising range of 5km, and the dual 350W brushed DC motors provide stable power output.
Equipped with mini 3DOF Robot Arm
Supports optional configuration of 5G parallel driving, Autowalker intelligent navigation kit and binocular depth camera, enabling rapid integration of autonomous driving and remote control functions.
Ultrasonic Ranging
The glowy ultrasonic module enables distance measurement through programming.
Ultrasonic Ranging
The glowy ultrasonic module enables distance measurement through programming.
Ultrasonic Ranging
The glowy ultrasonic module enables distance measurement through programming.
Ultrasonic Ranging
The glowy ultrasonic module enables distance measurement through programming.
Dimensional Diagram
| Product size | 297*126*210mm (when it is powered on ) |
| Product weight | About 706g |
| Material | Hard aluminum alloy |
| Camera resolution | 320*240 |
| DOF | 8DOF + 3DOF |
| Power supply | 7.4V 1500mAh 5C Lithium battery |
| Hardware | ESP32 robot controller |
| Software | app + action editing PC software |
| Servo | HPS-0618SG coreless servos; LFD-01M anti-blocking servos; |
| Control method | PC control/ app control |
| Package size | 48*20*17cm |
| Package weight | About 1.9kg |

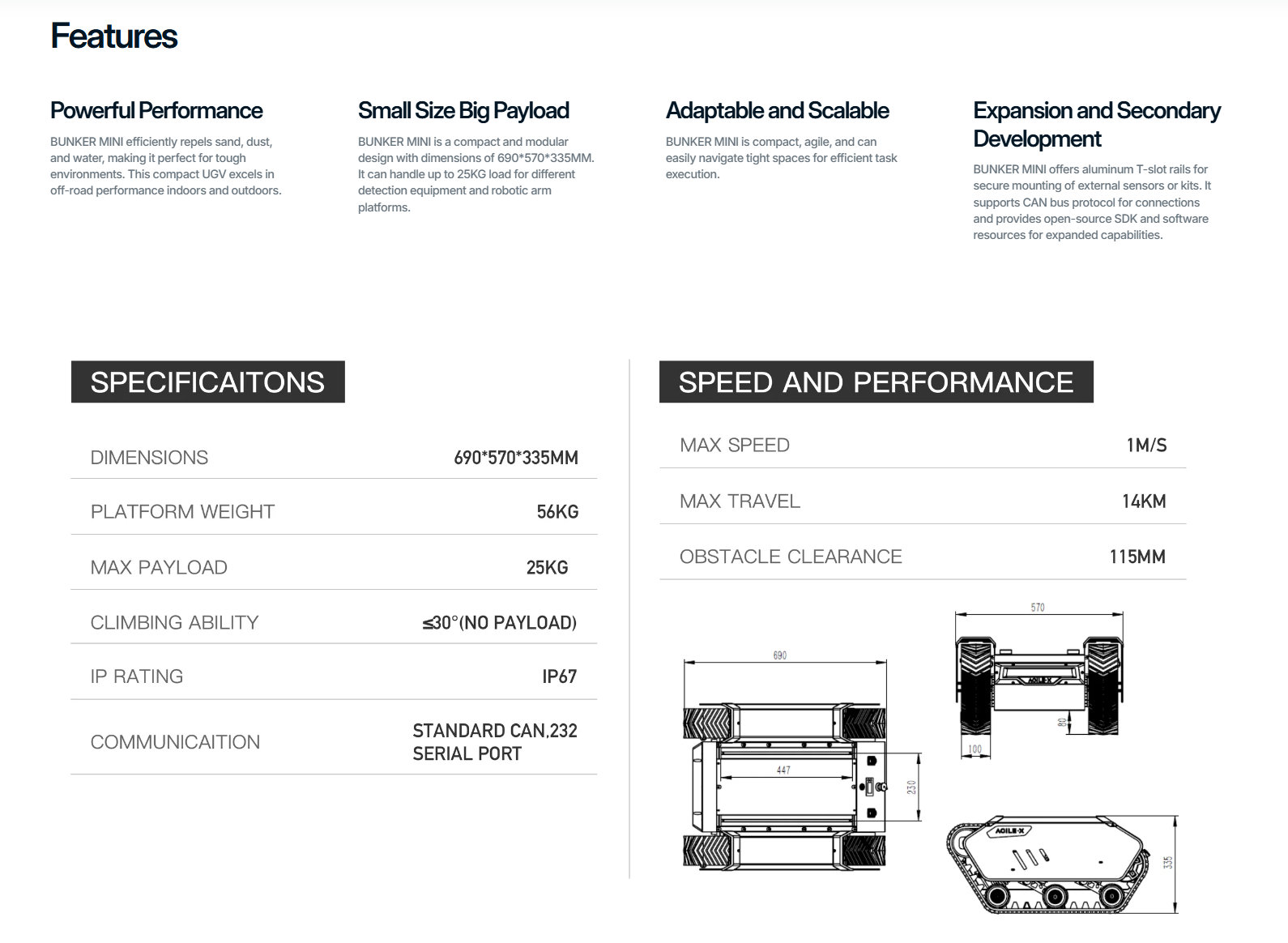

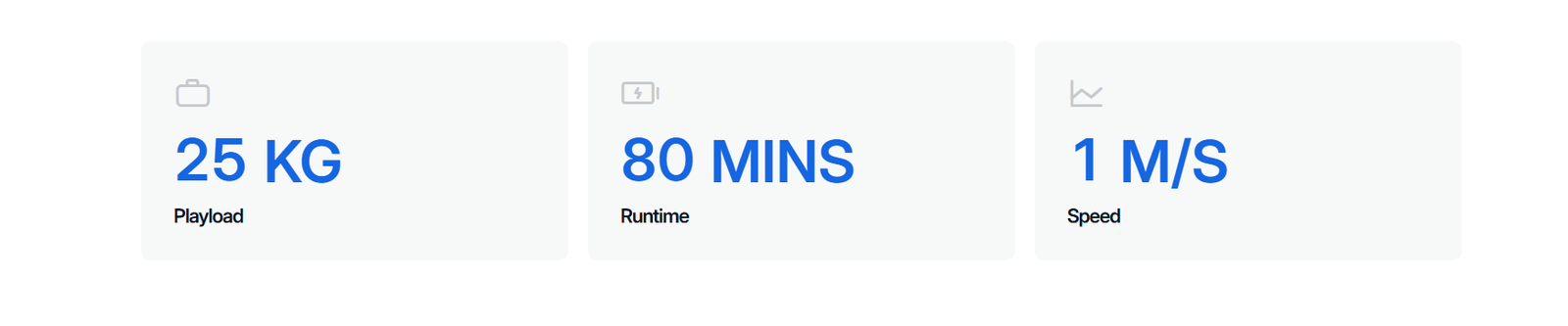

Product Parameters
| DIMENSIONS |
690*570*335MM |
|---|---|
| PLATFORM WEIGHT |
56KG |
| MAX PAYLOAD |
25KG |
| CLIMBING ABILITY |
≤30°(NO PAYLOAD) |
| IP RATING |
IP67 |
| COMMUNICAITION |
STANDARD CAN.232 SERIAL PORT |
| MAX SPEED |
1M/S |
| MAX TRAVEL |
14KM |
| OBSTACLE CLEARANCE |
115MM |
