Quick view Add to wishlist Agilex Scout Mini Differential Driving Robot Rover Mobile Robot, Differential Drive $429.00 Agilex Scout Mini Differential Driving Robot Rover $429.00 $429.00 For 1 item Add to cart

Key Features

580612245

Dimensions (mm)

23kg

Weight

Li-NMC

Battery

3m/s

Max Speed

IP22

Protection Level

3.5h (No-Load)

Range (Operating Time)

30°

Climbing Angle

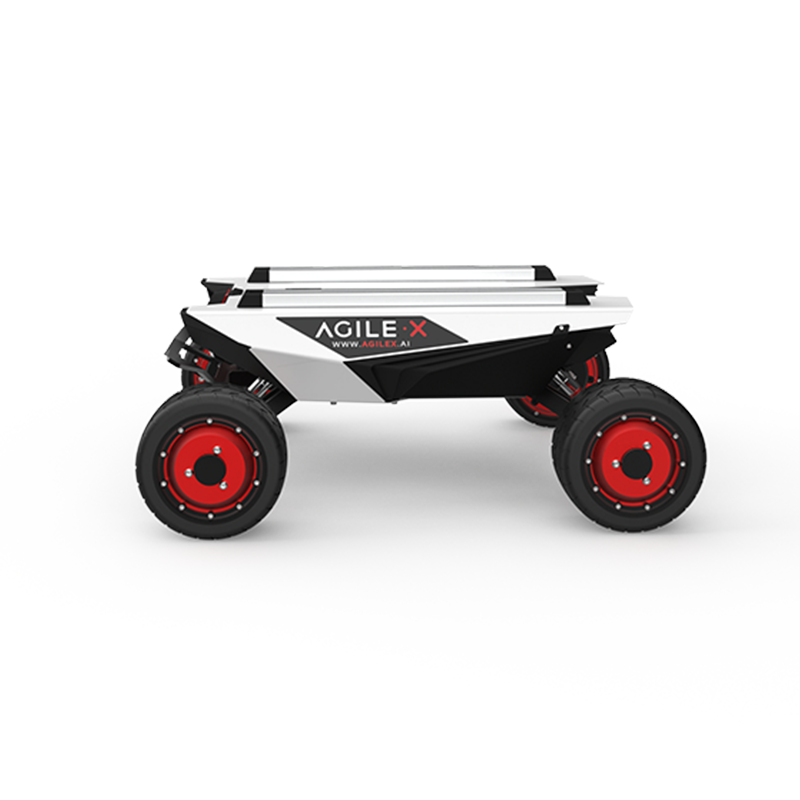

Agilex Scout Mini Differential Driving Robot Rover

$429.00

Short Description

Agilex Scout Mini is not just a robot; it’s your field-ready development platform for the future of autonomy. Engineered for researchers, developers, and innovators, this compact Unmanned Ground Vehicle (UGV) combines rugged all-terrain mobility with native ROS support and a highly modular design. Stop building from scratch and start deploying your advanced algorithms in real-world environments, faster than ever before.

Leave the lab floor behind. The Scout Mini is built to explore.
Self-Flipping Design: Never get stuck. The robot can autonomously right itself after a tumble.
Superior Obstacle Clearance: Conquer stairs, curbs, and debris up to 12 cm high with ease.
Aggressive Traction: High-torque motors and all-terrain treads provide grip on grass, gravel, dirt, and pavement.
Steep Slope Climbing: Confidently navigate inclines up to 30°

Buy it with:

Quick view

Add to wishlist

Agilex Scout Mini Differential Driving Robot Rover

Mobile Robot, Differential Drive

$429.00

Add to wishlist

Add to compare

Categories: Differential Drive, Mobile Robot

Explore MechDog Pro Tutorials: Get instant access to schematics, source code,

videos.https://wiki.hiwonder.com/projects/MechDog/en/latest/

SCOUT MINI

Small Footprint, Boundless Exploration – The All-Terrain High-Speed UGV.

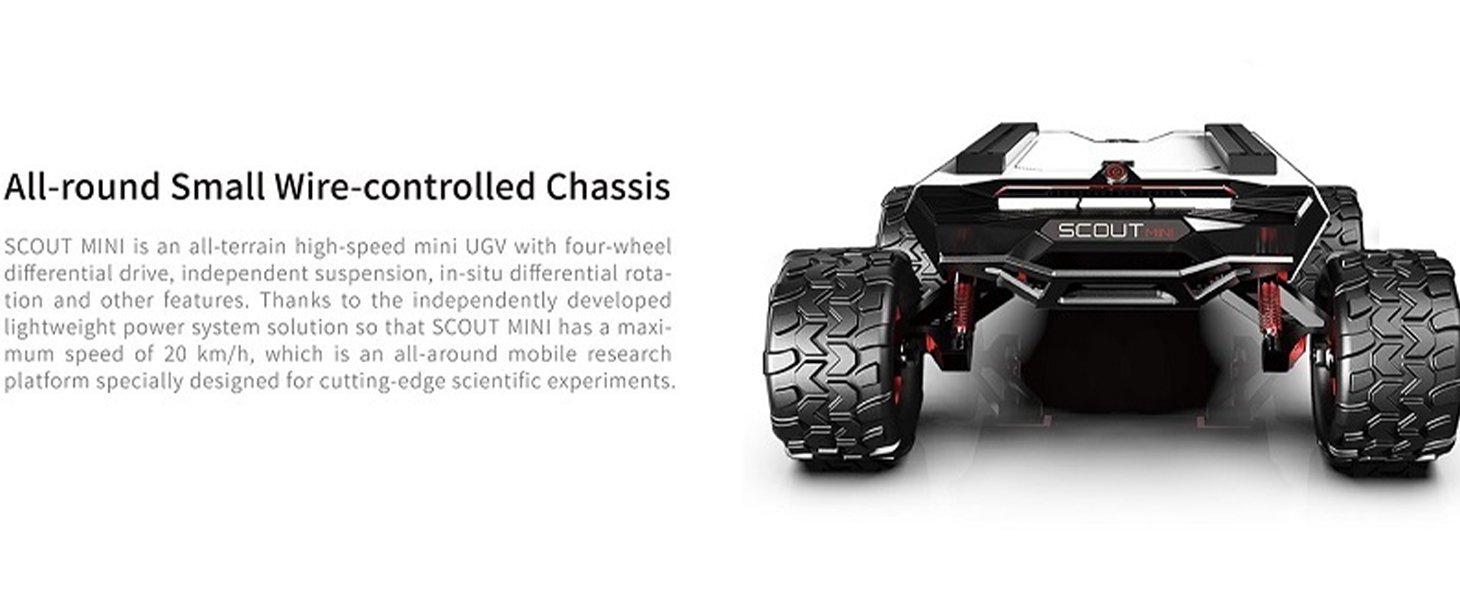

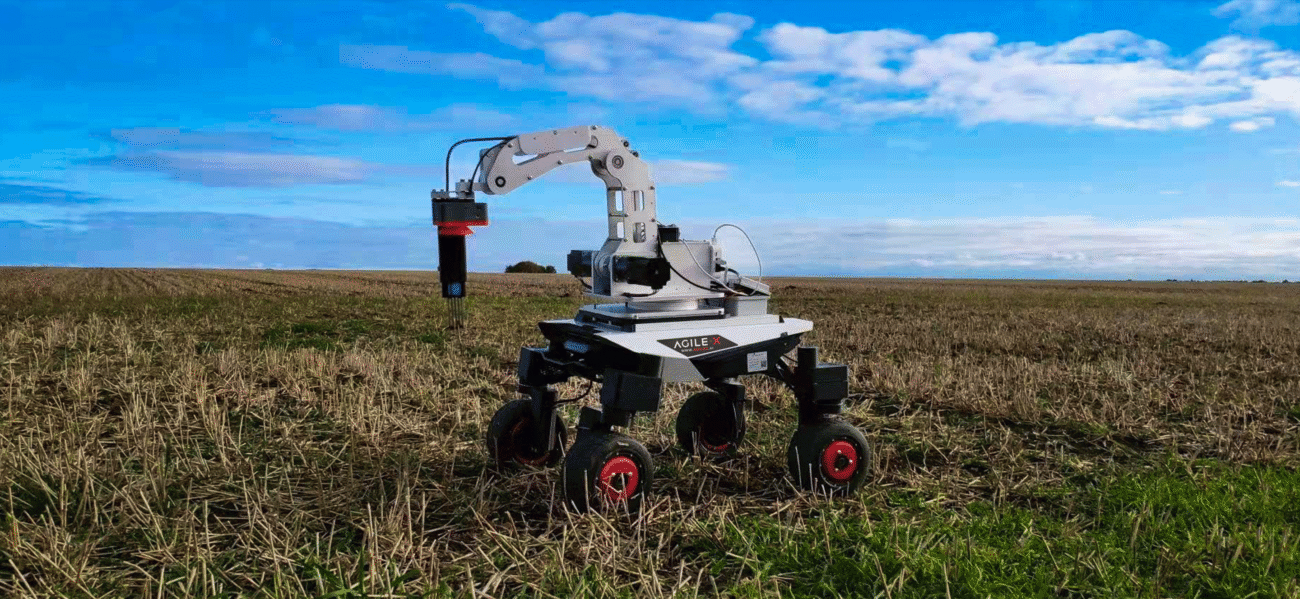

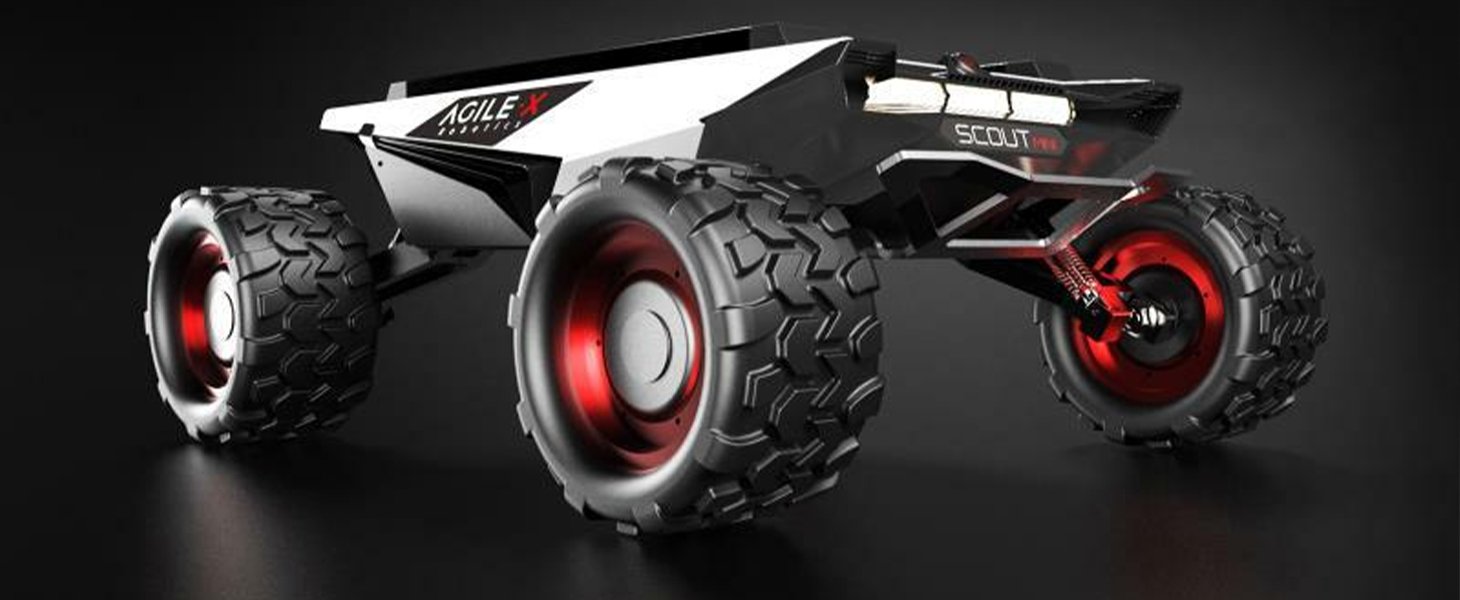

Lightweight Yet Rugged: Master of All-Terrain Obstacle Crossing

Featuring a 23 kg lightweight chassis, this platform delivers 30° gradeability and 120 mm vertical obstacle surmounting capability. Its combination of four-wheel differential drive and an independent suspension system ensures stable and smooth traversal across challenging surfaces such as gravel, grass, and uneven ground.

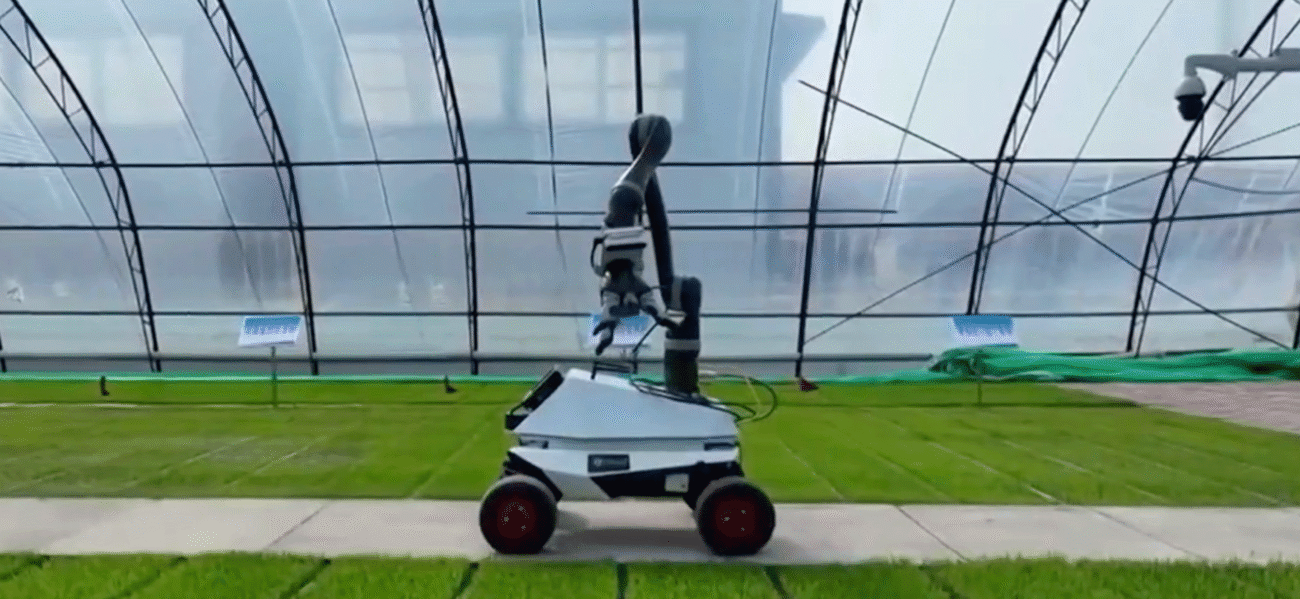

On-the-Spot Pivoting & Agile Maneuverability

Capable of in-situ rotation and precision steering, it easily handles movement requirements in confined or complex spaces. The platform delivers stable and responsive control in both laboratory settings and industrial environments.

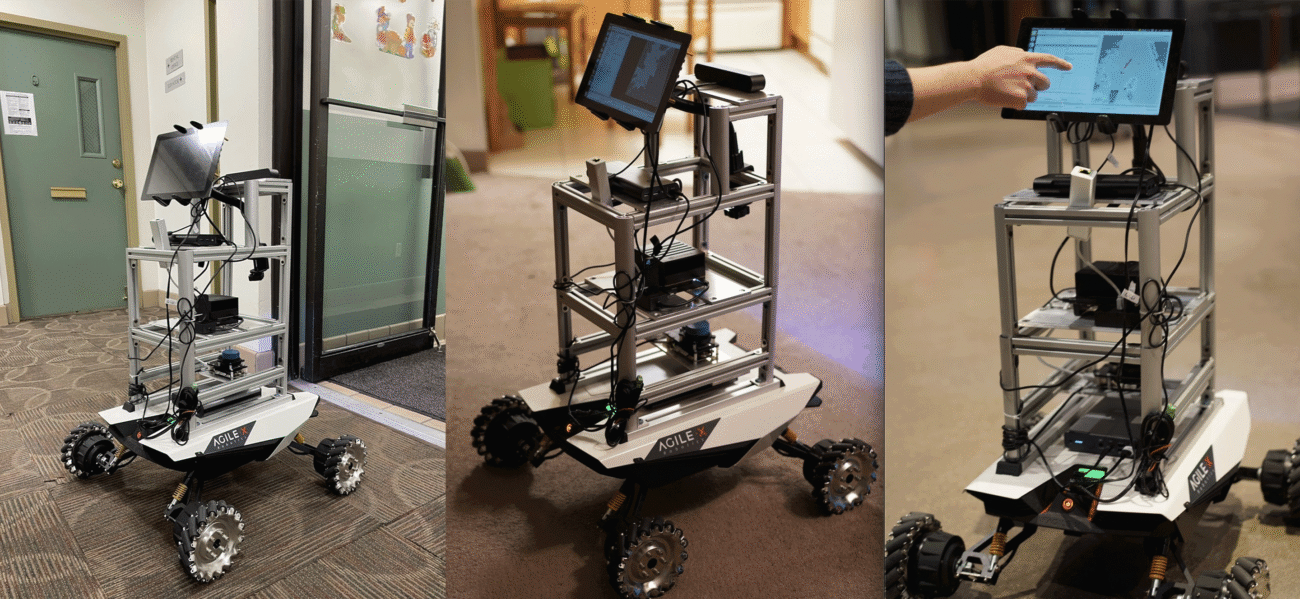

Open Ecosystem for Rapid Development

Featuring an open hardware and software architecture, it provides native support for CAN bus, ROS/ROS 2, and a comprehensive SDK. The platform enables flexible integration of multi-sensor payloads, including LiDAR, depth cameras, and 5G modules, to facilitate efficient algorithm validation and system integration.

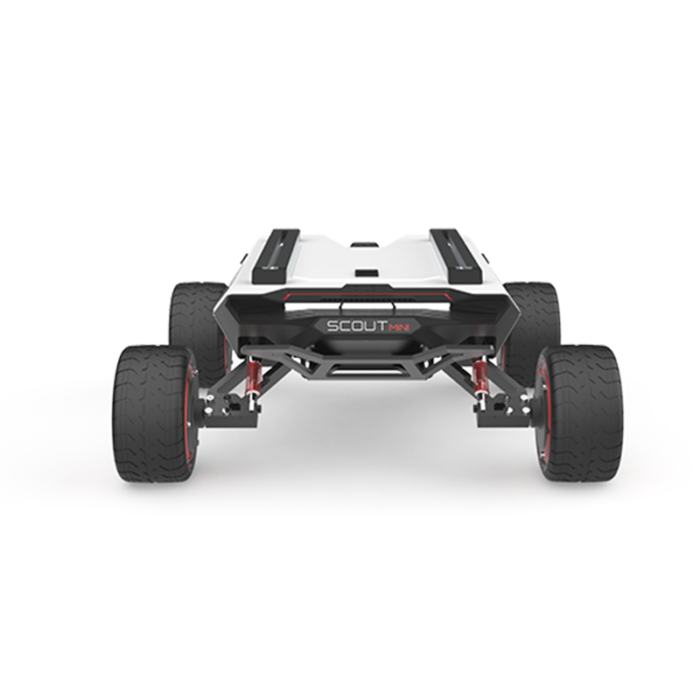

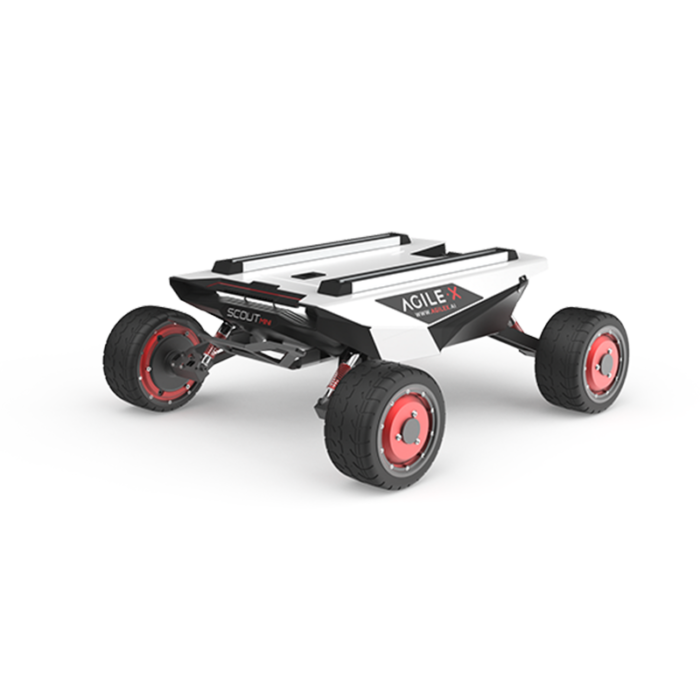

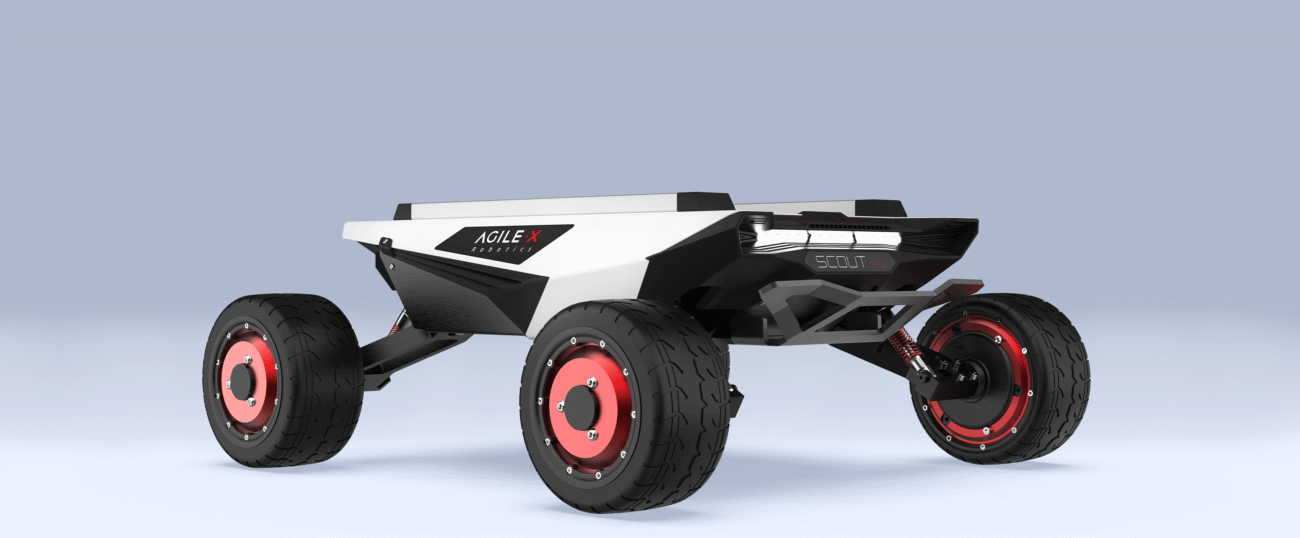

Comprehensive Full-Body

This view provides a detailed 360° overview, highlighting key design features such as its compact chassis, wheel and suspension configuration, and external sensor placement.

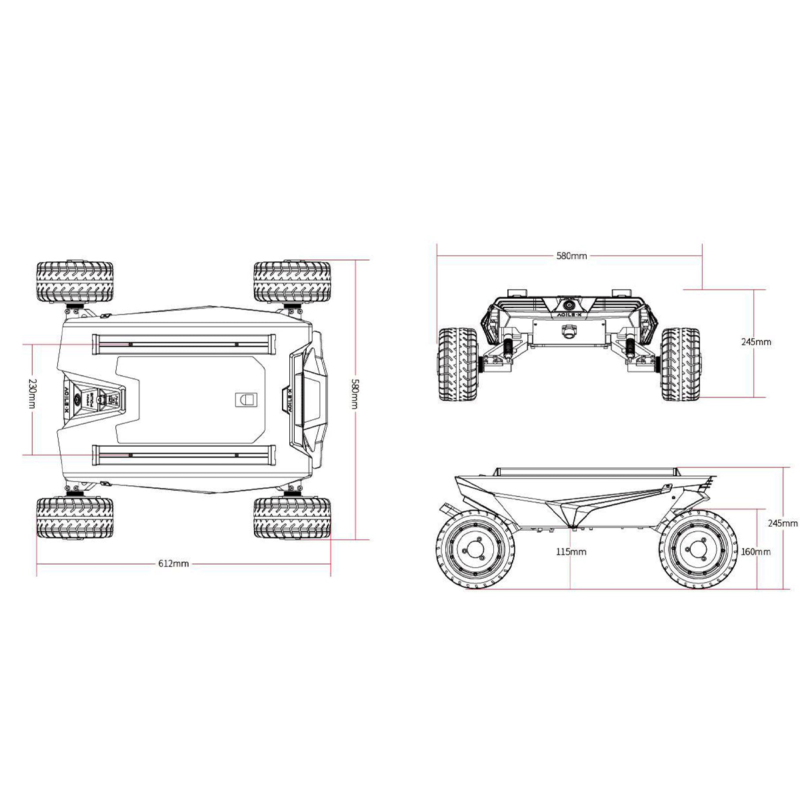

Dimensional Diagram

DIMENSIONS	612580245MM
PLATFORM WEIGHT	23KG
MAX PAYLOAD	10KG (STANDARD WHEEL) 20KG (MECANUM WHEEL)
CLIMBING ABILITY	≤30°(STANDARD WHEEL) ≤8°(MECANUM WHEEL)
IP RATING	IP22
COMMUNICAITION	STANDARD CAN.232SERIAL PORT
MAX SPEED	3M/S (STANDARD WHEEL) 3M/S (MECANUM WHEEL)
MAX TRAVEL	10KM
OBSTACLE CLEARANCE	115MM
Control method	PC control/ app control
Charging Time	2h
Battery Capacity	24V15Ah

Product Parameters

DIMENSIONS	612580245MM
PLATFORM WEIGHT	23KG
MAX PAYLOAD	10KG (STANDARD WHEEL) 20KG (MECANUM WHEEL)
CLIMBING ABILITY	≤30°(STANDARD WHEEL) ≤8°(MECANUM WHEEL)
IP RATING	IP22
COMMUNICAITION	STANDARD CAN.232 SERIAL PORT
MAX SPEED	3M/S (STANDARD WHEEL) 3M/S (MECANUM WHEEL)
MAX TRAVEL	10KM
OBSTACLE CLEARANCE	115MM
